Welcome to Starfin Australia
Starfin Australia prides itself in providing the best possible service, quality product, and value to our customers whilst growing our business into the future.

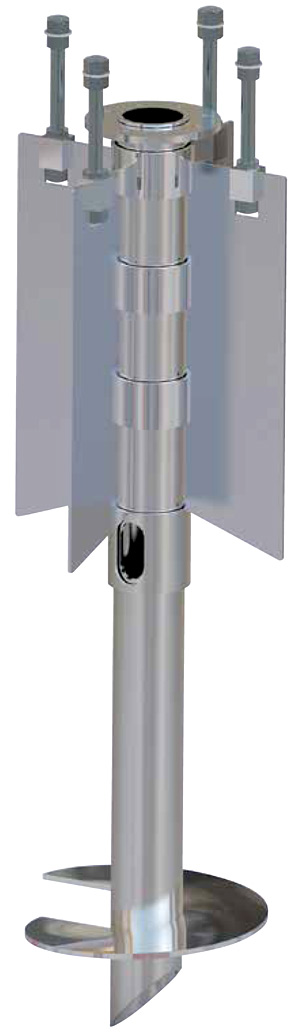

Starfin Australia stocks and distributes a range of screw pile and bored hole pole foundations systems.
The Starfin Patented designed has been engineered specifically for laterally loaded,non critical structures such as lighting columns, traffic lights and power transmission poles.
The traditional method of boring holes and using steel cages can associate with delays due to weather, curing of concrete and not to mention the elimination of concrete and soil spoils.
The Star Fin System can be installed and ready for use within minutes.
Civil contractors will find not only is the system able to streamline their building methods, but greatly reduce overall costs.
Browse our current models in both Star Finned Screw Pile and Rag Bolt.
Click each for more info and specs.
- All Products
- Rag Bolt
- Starfin Screw Pile

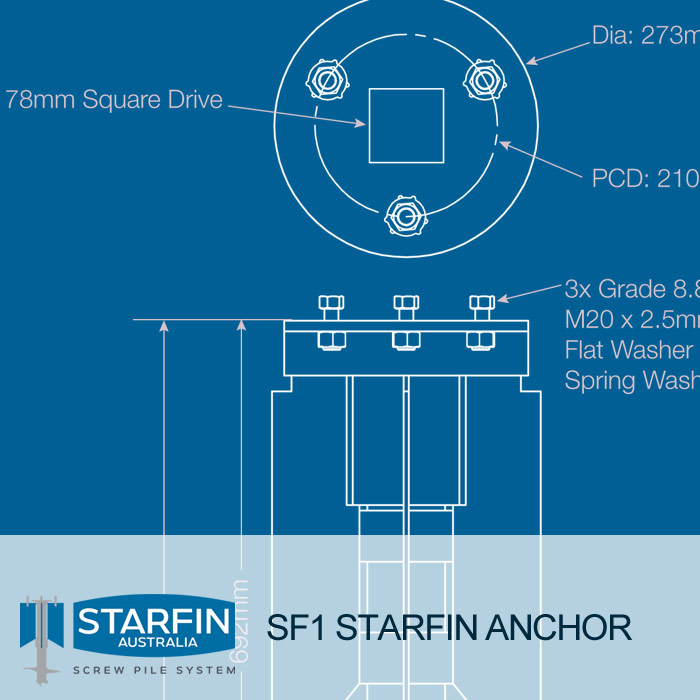

SF1 Starfin Anchor
Specifications 3 Fin Starfin Anchor Ultimate Capacity Moment kNm: 12 kNm Ultimate Capacity Shear kN: 3.5 kN Bolts Minimum Tensile […]

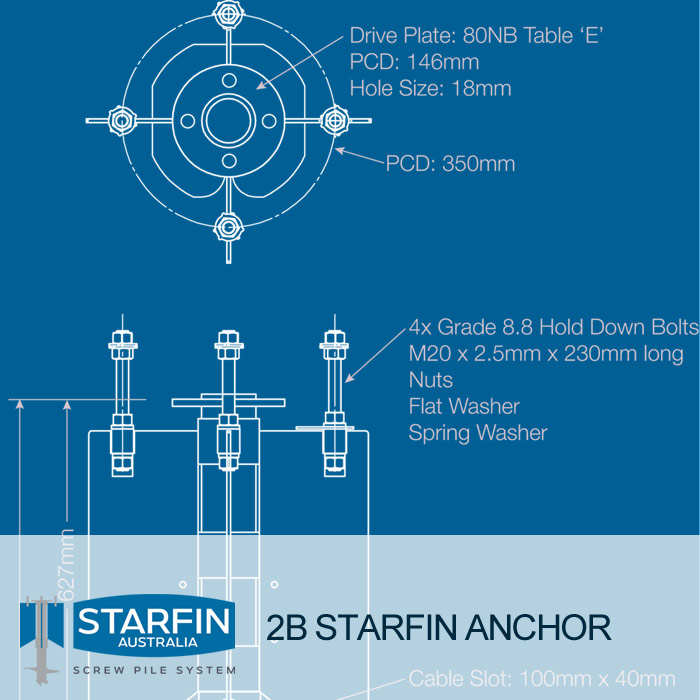

2B Starfin Anchor
Specifications 4 Fin Starfin Anchor Ultimate Capacity Moment kNm: 17 kNm Ultimate Capacity Shear kN: 4.0 kN Bolts Minimum Tensile […]

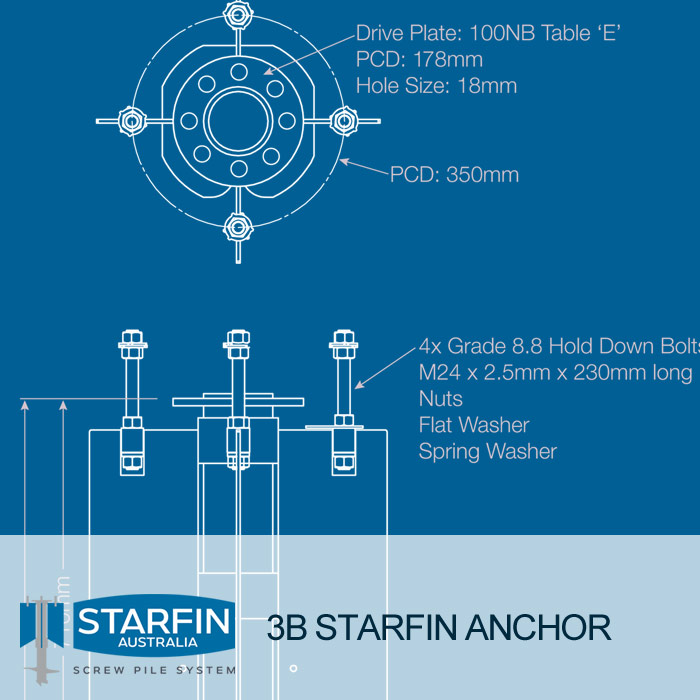

3B Starfin Anchor
Specifications 4 Fin Starfin Anchor Ultimate Capacity Moment kNm: 24.7 kNm Ultimate Capacity Shear kN: 6.0 kN Bolts Minimum Tensile […]

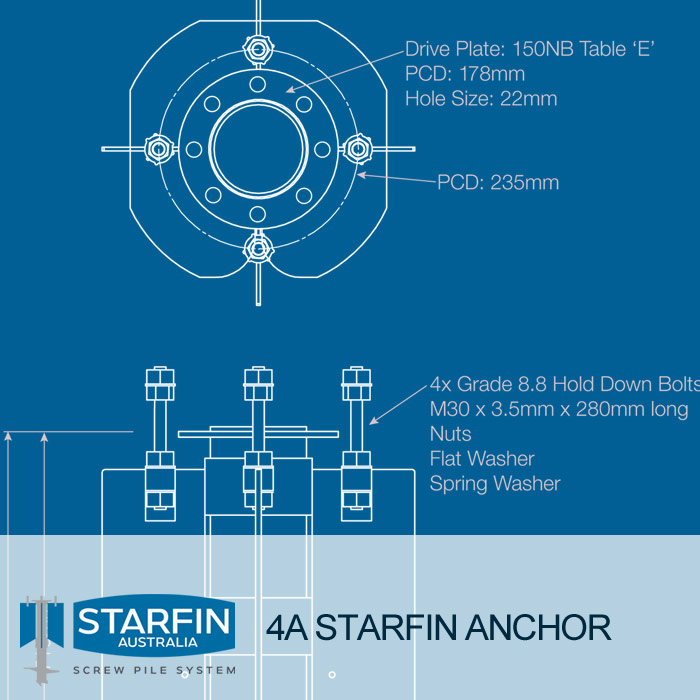

4A Starfin Anchor
Specifications 4 Fin Starfin Anchor Ultimate Capacity Moment kNm: 39.2 kNm Ultimate Capacity Shear kN: 7.0 kN Bolts Minimum Tensile […]

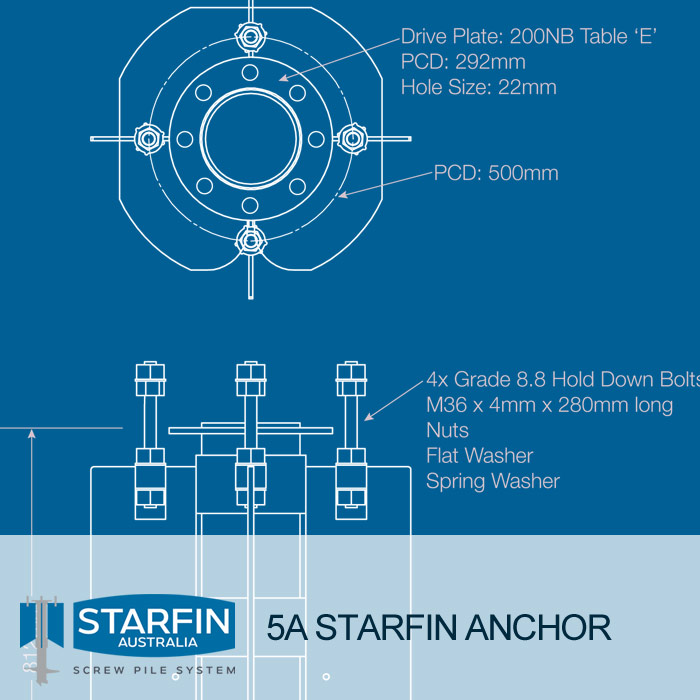

5A Starfin Anchor
Specifications 4 Fin Starfin Anchor Ultimate Capacity Moment kNm: 70 kNm Ultimate Capacity Shear kN: 10.0 kN Bolts Minimum Tensile […]

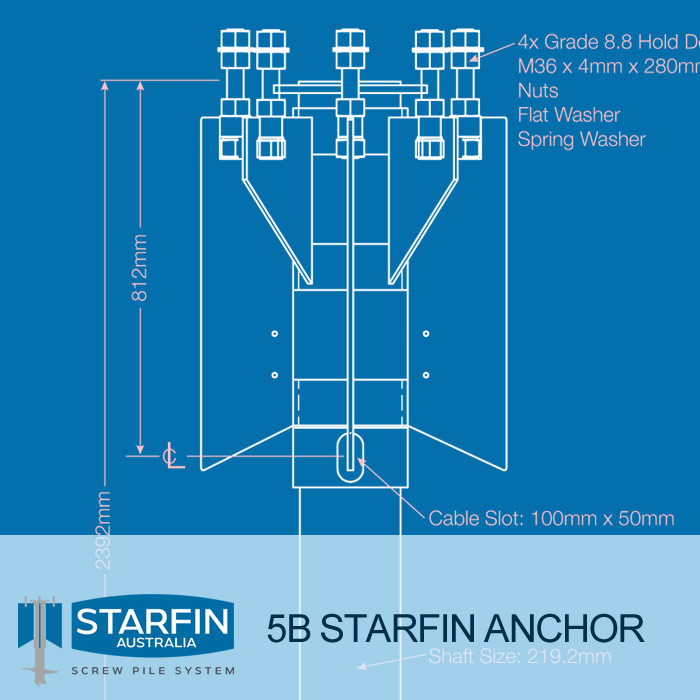

5B Starfin Anchor
Specifications 8 Fin Starfin Anchor Ultimate Capacity Moment kNm: 80 kNm Ultimate Capacity Shear kN: 14.0 kN Bolts Minimum Tensile […]

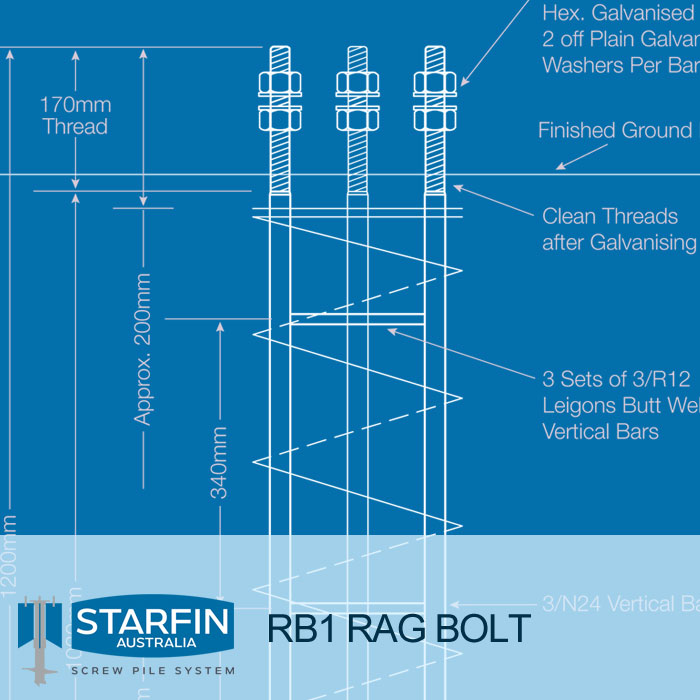

RB1 Rag Bolt
Specifications Ultimate Capacity Moment kNm: 12 kNm Ultimate Capacity Shear kN: 3.5 kN Nuts Minimum Tensile Strength: 830MPa Nuts Minimum […]

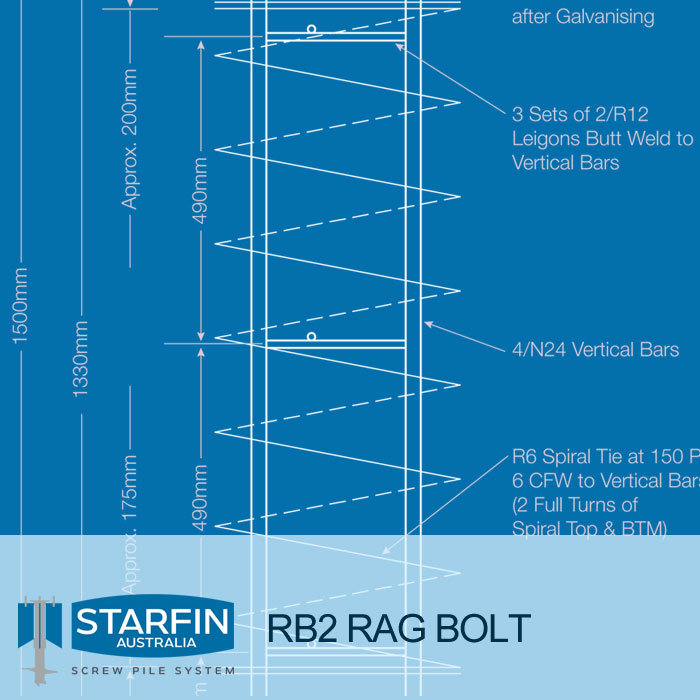

RB2B Rag Bolt
Specifications Ultimate Capacity Moment kNm: 17 kNm Ultimate Capacity Shear kN: 4 kN Nuts Minimum Tensile Strength: 830MPa Nuts Minimum […]

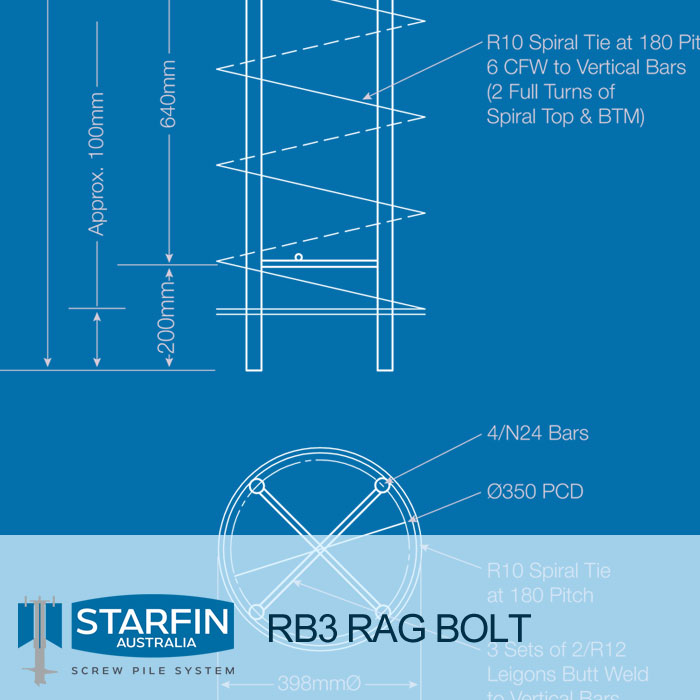

RB3B Rag Bolt
Specifications Ultimate Capacity Moment kNm: 32 kNm Ultimate Capacity Shear kN: 6 kN Nuts Minimum Tensile Strength: 830MPa Nuts Minimum […]

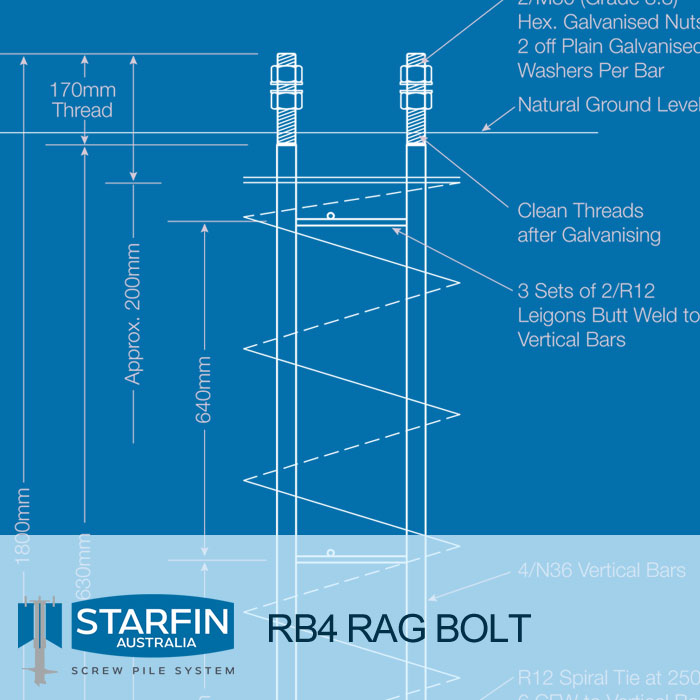

RB4A Rag Bolt
Specifications Ultimate Capacity Moment kNm: 70 kNm Ultimate Capacity Shear kN: 10 kN Nuts Minimum Tensile Strength: 830MPa Nuts Minimum […]

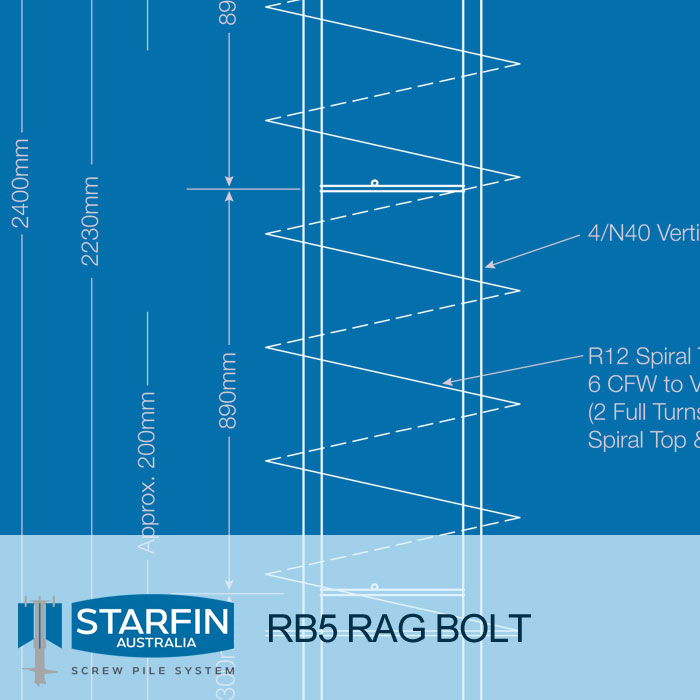

RB5A Rag Bolt
Specifications Ultimate Capacity Moment kNm: 70 kNm Ultimate Capacity Shear kN: 10 kN Nuts Minimum Tensile Strength: 830MPa Nuts Minimum […]
