Specifications
- 4 Fin Starfin Anchor
- Ultimate Capacity Moment kNm: 70 kNm
- Ultimate Capacity Shear kN: 10.0 kN
- Bolts Minimum Tensile Strength: 830MPa
- Bolts Minimum Yield Strength: 660MPa
- All welds to be in accordance with Australian Standard AS1554-2001
- Hot Dip Galvanised to AS/NZ4680:2006
- Total Weight: 176kg

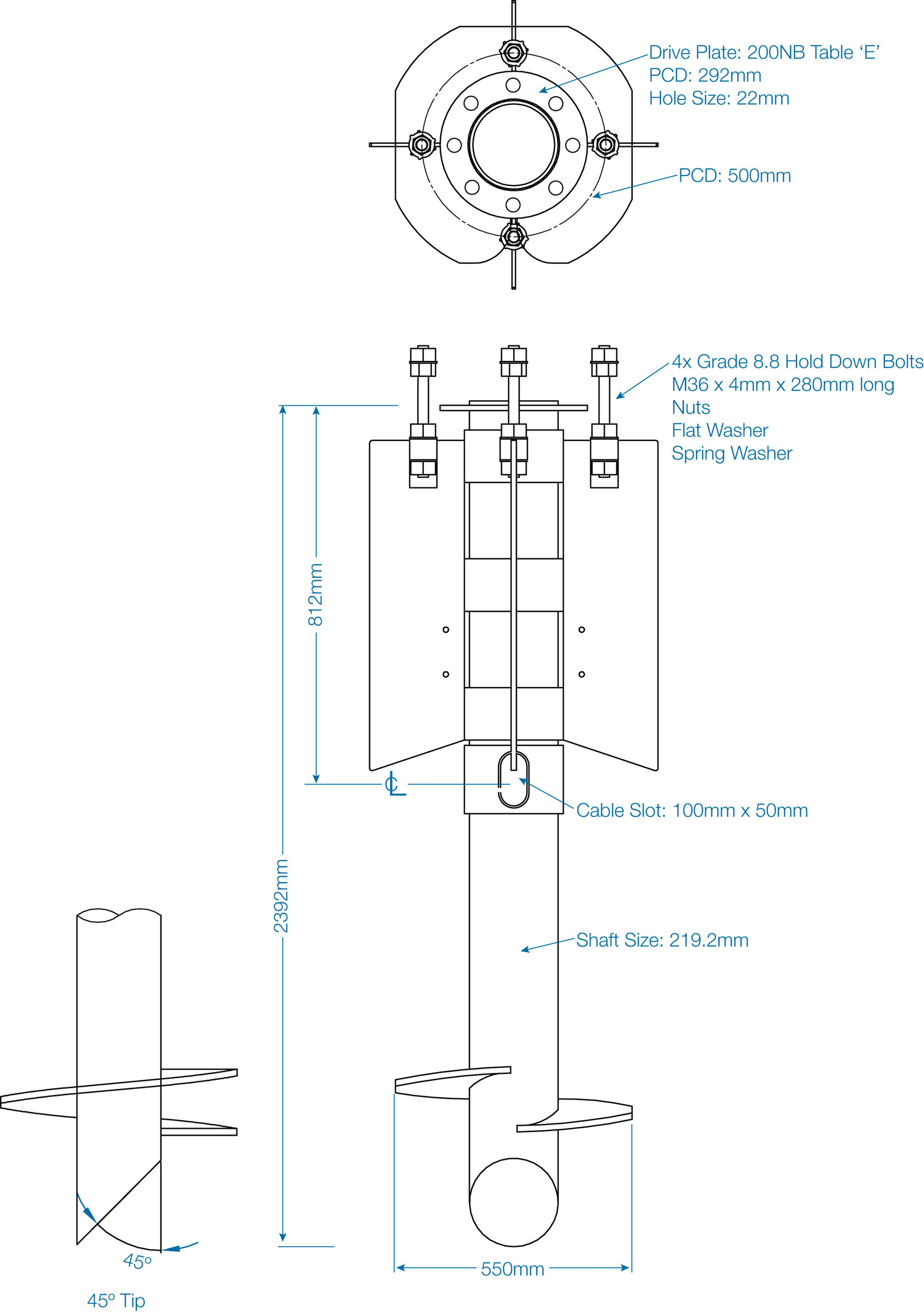

Technical drawing - click for full size version.
